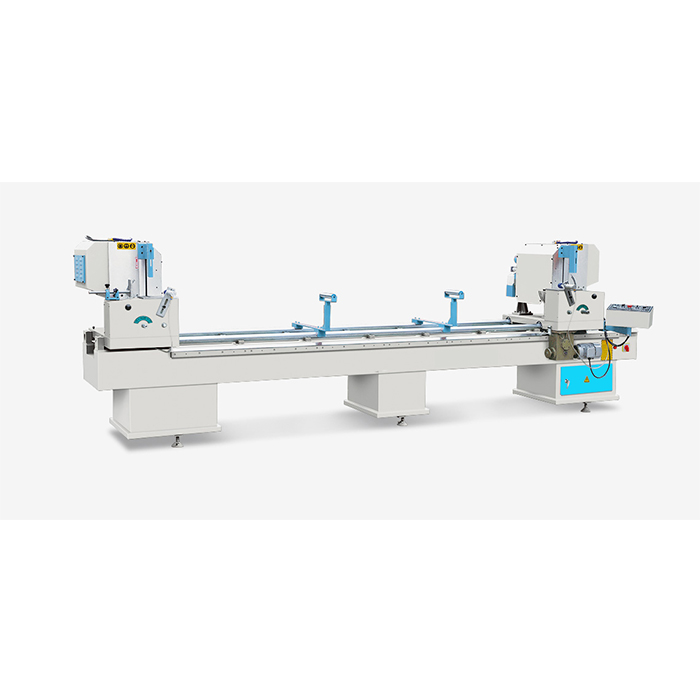

PVC Aluminum Profile Double Heads Cutting Machinery

1.Special for aluminum and PVC profile cutting at ± 45 ° /90 °
2. Carbide saw blade gives accurate processing and high endurance
3. The two heads can work independently or together.
4. Cutting off required length and two end angles are available by one processing
Availability:
Quantity:

PVC Aluminum Profile Double Heads Cutting Machinery



Specifications


1.Double head Mitre Saw for PVC&Aluminum window machine

2. PVC&aluminum profiles

3..CE certificate




PVC Aluminum Profile Double Heads Cutting Machinery


Main Features


1.PVC Accessories Special for aluminum and PVC profile cutting at ± 45 ° /90 °

2. Carbide saw blade gives accurate processing and high endurance

3. The two heads can work independently or together.

4. Cutting off required length and two end angles are available by one processing


PVC Aluminum Profile Double Heads Cutting Machinery
PVC Aluminum Profile Double Heads Cutting Machinery



Technical Parameters


Power supply 380V 50Hz
Saw cutting(w*h) 120×140mm
Main motor power 3KW
Main motor rotation speed 2800r/min
Saw bladedimension φ420× φ30
Cutting angle ± 45 ° /90 °
Repeat Locating length ≤0.3mm
Angle cutting tolerance ±5’
Planeness of cutting surface ≤0.10mm
Cutting profile surface roughness Ra12.5um
Max/Min cutting length 3500-400mm
Size 4000x970x1400mm
Weight 1000kg


PVC Aluminum Profile Double Heads Cutting Machinery


FAQ


Q: Are you trading company or manufacturer?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How to order?

A: Please send us your purchase order by Email or Fax, We need to know the following information for your order:

1) Product information: Order Quantity, Specification (size, material, color, length, Design styles),

Artwork or Sample will be the best.

2) Delivery time required.

3) Shipping information: Address, Phone number, Destination seaport / airport.

4) Forwarder's contact details if there is any in China.

5. Q: What is the payment terms of order amount?

A: We accept T / T or L / C at sight.

6. Q: Can I put the logo or company name on the products?

A: Sure. We will follow your request to produce your personal brand profiles.


PVC Aluminum Profile Double Heads Cutting Machinery
